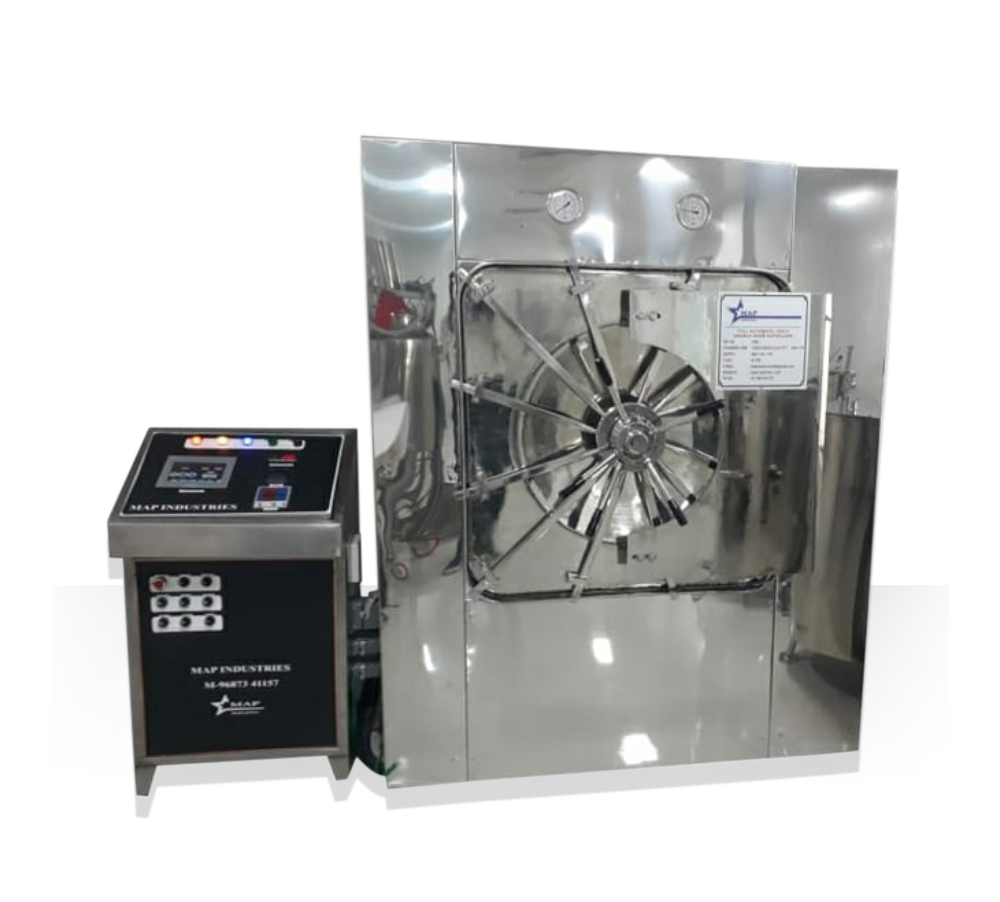

HPHV Automatic Autoclave Sterilizer

HPHV – Automatic Autoclave Sterilizer Manufacturer

  • Manufactured as per GMP norms
  • Vacuum pulsing & drying during the process for sterility assurance.
  • Accurate control of temperature, humidity, valves & all critical parameters through microprocessor.
  • Sterilization at standard 121°C/ 134°C cycles.
  • PLC based automation with 6 pre-programmed cycles & additional user defined cycles.
  • Live display of phase status, current values, set values, temperature, pressure & humidity.
  • Current & previous reports can be printed through external printer/ internal printer.

In an automated autoclave, the microprocessor controls all the processes involved in sterilization. It is also provided with a vacuum pump. A high-capacity autoclave designed for dental clinics, providing reliable sterilization at 121 degrees Celsius and enhanced safety features. Horizontal Autoclave Sterilizer is fully automatic utilizing plc base controls, which operate pneumatically actuated solenoid valves.

Safety Features Of An Autoclave

  • Door auto lock during process to ensure sterility assurance.
  • Audio visual alarm for any error, displaying possible cause and remedy.
  • Chamber fabricated with heavy duty SS 304/ SS 316.
  • Password authentication to avoid unauthorized access.
HPHV Automatic Steam Sterilizer HPHV Automatic Steam Sterilizer

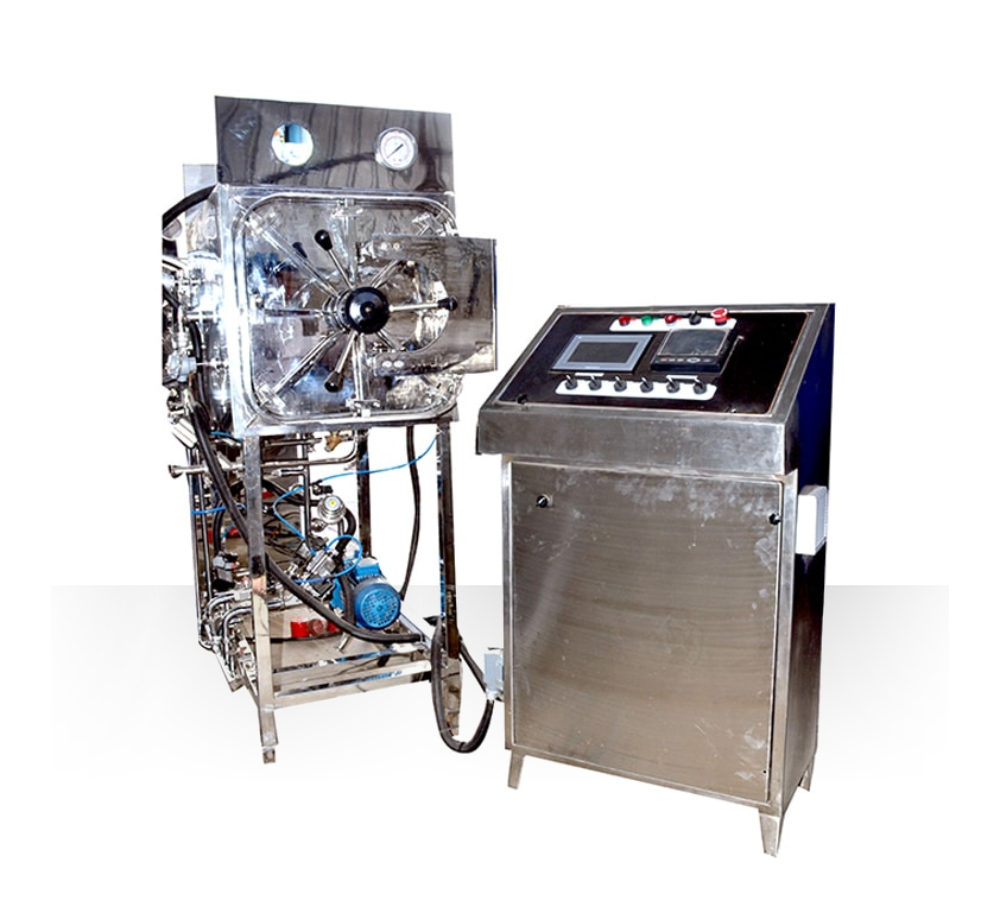

Horizontal Automatic Rectangular Autoclaves

Chamber (W x H x D) (mm) Cuft Liter Floor Space (W x D) (mm)
450 x 450 x 900 6.75 180 1500 x 2300
600 x 600 x 1200 16.00 450 1700 x 2700
600 x 600 x 1500 20.00 550 1700 x 2700
900 x 600 x 1500 31.00 850 2200 x 3000
HPHV Rectangular Steam Sterilizer HPHV Rectangular Steam Sterilizer

Horizontal Automatic Cylindrical Autoclaves

Chamber (Ø x D) (inch) Cuft Liter Floor Space (W x D) (inch)
16 x 30 3.53 100 24 x 48
20 x 36 6.50 185 24 x 48
20 x 48 8.75 248 24 x 48
ADD in HPHV Automatic Autoclave Sterilizer ADD in HPHV Automatic Autoclave Sterilizer

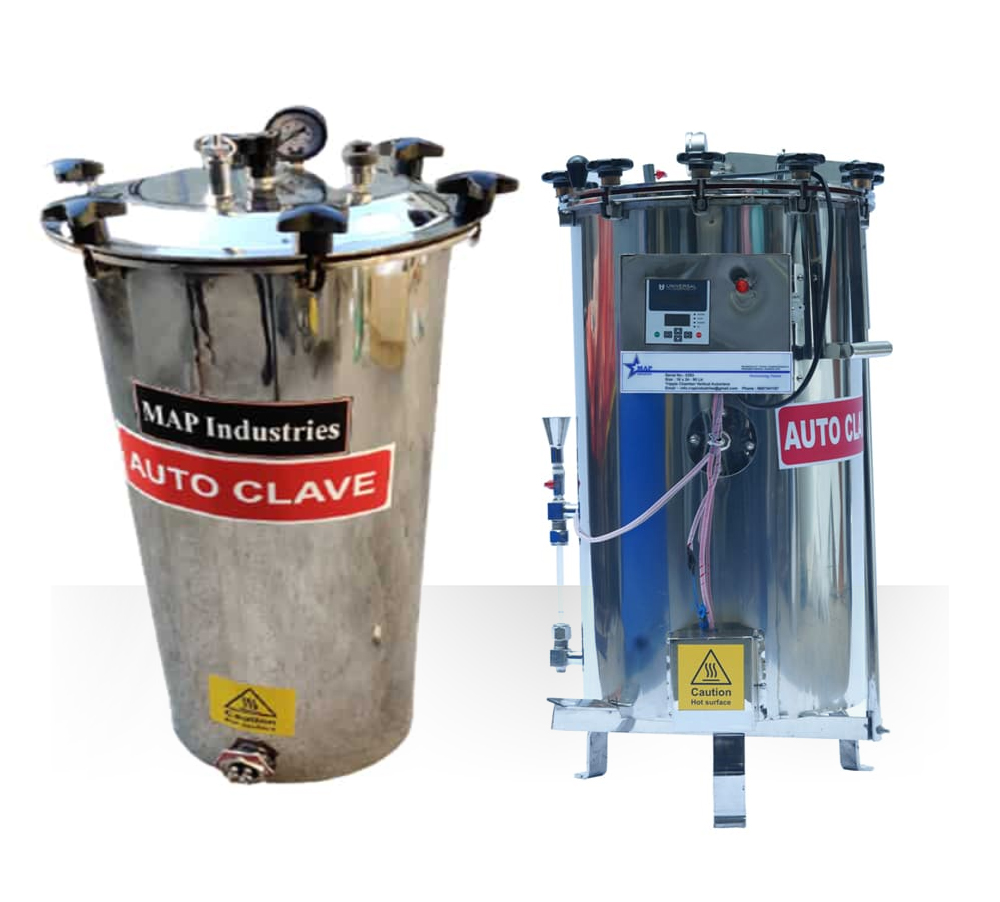

Automatic Vertical Autoclaves

Chamber (Ø x D) (inch) Cuft  Liter Floor Space (W x D) (inch)
12 x 12     0.88     25 20 x 20
12 x 20     1.41     40 20 x 20
14 x 22     1.76     50 28 x 28
16 x 24     2.86     81 30 x 30
